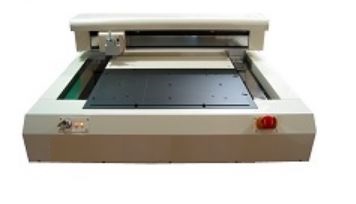

4Point Probe System(SR3000)

Prev： 4Point Probe System（2000N）

Next： Infrared thermal wave nondestructive test

Introduction

Specification

Accessory

Documents

The SR3000 is a measurement system for Sheet Resistance and Resistivity of a plain rectangle sample such as LCD, ITO, Glass, Film etc.
And it is designed to work for remote functioning to meet automation such as automatic sample loading.
This system is designed for easy operation by a personal computer with exclusive software, and this software has function for various data analyses, mapping and etc.

Utility requirement
	Power requirements
	- Line voltage : AC 110V or 220V ±10% - Electric power : 100 W, 500 mA - Line frequency : 50 Hz
	Air requirements
	- Air 1 Line : About 1 MPa (kgf/cm²)
	System table
Outside Dimensions
	SR3000S (370X470) : 650mm(W) × 900mm(D) × 350mm(H)
	SR3000M (550X650) : 700mm(W) × 950mm(D) × 350mm(H)
	SR3000L (600X720) : 800mm(W) ×1050mm(D) × 350mm(H)
	SR3000C : Customer size
Operating environment
	Temperature range : 23°± 1°C
	Relative humidity : 30 % ∼ 70 %
	- Avoid placing the system near a source of RFI, vibration and sources of gas. - Avoid large changes in temperature.
