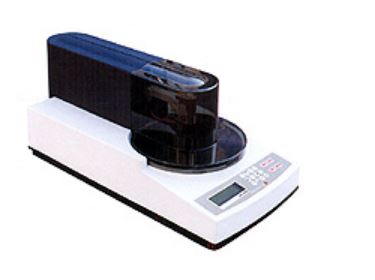

4Point Probe System(1000N)

Prev： TDCF Test System

Next： 4Point Probe System（2000N）

Introduction

Specification

Accessory

Documents

The SR1000N is a measurement system for Sheet Resistance and Resistivity of Wafer, LCD, ITO, Solar cell, Fuel cell samples.
Measurement is simply completed by pressing the "Measure" BUTTON only, and the measurement value is displayed on the LCD display window of the system.

Utility requirements
	Power requirements
	- Line voltage : AC 100 ~ 220V ± 10% - Electric power : 40 W, 500 mA - Line frequency : 60 Hz
Outside Dimension
	254mm(W) × 562mm(D) × 250mm(H)
Operating environment
	Temperature range : 23°± 1°C
	Relative humidity : 30 % ∼ 70 %
	Avoid placing the system near a source of RFI, vibration and sources of gas.
	Avoid large changes in temperature.
